Laminated Glass Building Curved Stairs With Tempered Glass / Stainless Steel Baluster

Product Categories

Shenzhen Prima Construction Materials Co., Ltd.

Contact Now

Name: Laminated Glass Building Curved Stairs With Tempered Glass Stainless Steel Baluster
Brand: Prima
Price: 1999 USD

Brand Name : Prima

Model Number : PR-CS001

Certification : CE,AS/NZS2208,ANSIZ97.1

Place of Origin : China

MOQ : 1 set

Price : $1999-$5000/set

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P,Paypal,

Supply Ability : 500 sets per Month

Delivery Time : 30-45 days after Shop Drawing Confirmed

Packaging Details : PE foam + hard paper + woven bag + plywood box

Floor height : customized as your job site

Stair Width : for 700-1800mm

Stair Type : Straight ,Curved,Floating and Spiral Staircase

stringer : stainless steel / carbon steel

Treads : laminated glass / solid wood

Baluster : Tempered Glass / Stainless Steel

Contact Now

Prima factory Laminated glass treads Curved staircase glass

Dimension:

Size	Floor height	customized as your job site
Size	Width	700-1800mm
Material	Beam	stainless steel / carbon steel
	Tread	laminated glass / solid wood
	Handrail	stainless steel / carbon steel / solid wood / PVC
	Baluster	stainless steel / carbon steel / aluminum
	Rod	stainless steel / carbon steel / aluminum
Component & Size (mm)	Beam	Dia 114mm*6mm thickness inside support post;
	Beam	dia 120mm*6mm outside support post
	Tread thickness	10+1.14+10mm or 12+1.14+12mm for glass tread;
	Tread thickness	30 - 38mm for solid wood tread
	Handrail	dia=50.8mm or square=50*50mm
	Baluster	dia=50.8mm / 38mm or square=50*50mm
	Rod/Wire	dia=4/6/8mm
	Glass	10 or 12mm thickness
	Glass	6+1.14+6mm/8+1.14+8mm laminated glass
Finish	Stainless steel	mirror/ satin
	Carbon steel	hot galvanizing/powder coating/painting
	Aluminum	powder coating/ galvanized/ oxidize
	Solid wood	painted
	Glass	Clear/frosted/tinted

Glass for Optional :

Laminated Glass Building Curved Stairs With Tempered Glass / Stainless Steel Baluster

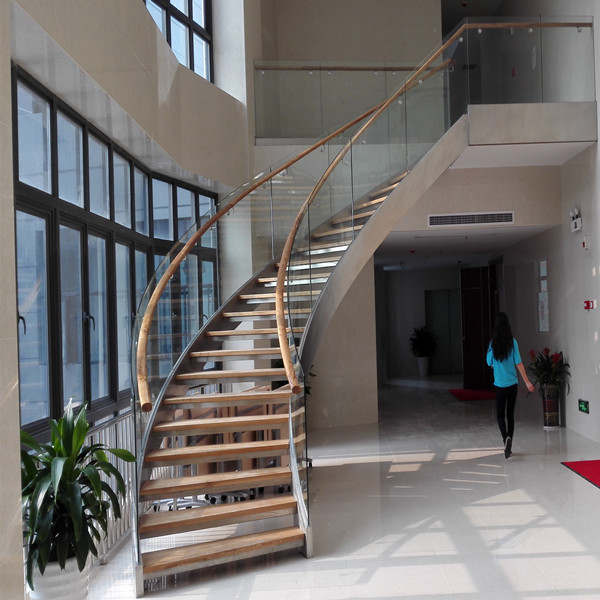

Wooden Treads Curved Stairs :

Laminated Glass Building Curved Stairs With Tempered Glass / Stainless Steel Baluster

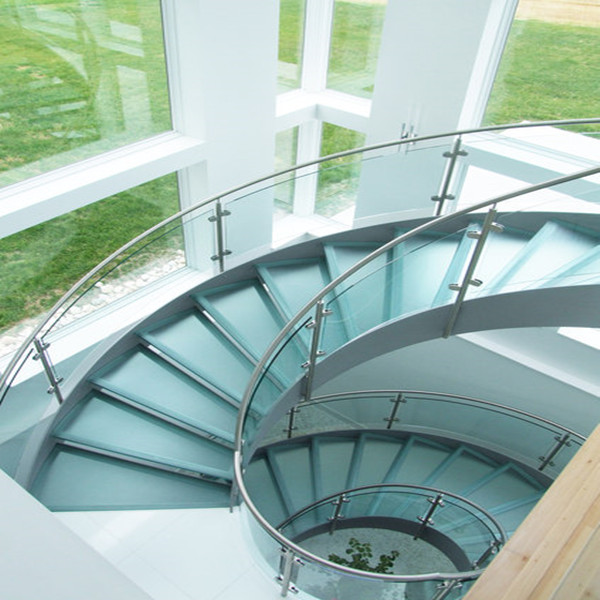

Glass Treads Curved Staircase:

Laminated Glass Building Curved Stairs With Tempered Glass / Stainless Steel Baluster
